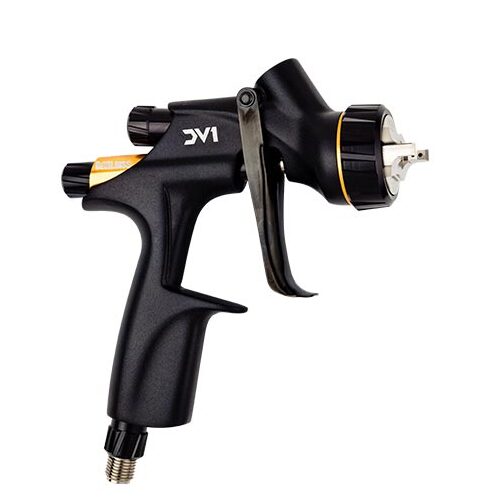

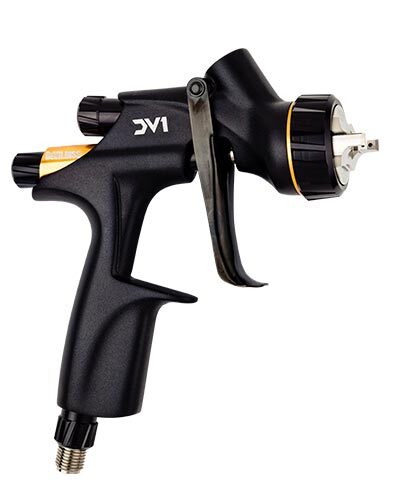

DEVILBISS DV1 Clear Gun - Non Digital 1.3mm


In Stock

Calculate Shipping

Pick up - $0.00
Pick up

The DV1 Clearcoat gun features the all-new DV1-C1 PLUS Clearcoat Air Cap, delivering superior highefficiency performance for a flawless finish. This air cap distributes even, super-fine particles in a consistent, homogeneous pattern to lay the clear flat, allowing painters to easily wet up a surface while minimizing runs and sags on vertical panels. The all-new fluid tip design increases fluid flow while stabilizing air flow, minimizing material usage and providing significant paint savings.
With a new black matte finish, the DV1 Clearcoat boasts a better grip for easy handling, ensuring maximum comfort on the job, while providing more power for higher productivity.

Through faster performance, proven paint savings and superior atomization, the DV1 Clearcoat Spray Gun gives painters the confidence to know that they can achieve a high-quality, glass-like finish every time.
The DV1 Clearcoat boasts comprehensive features that revitalize the spraying process, including
- Silent-action trigger designed to remove sideways and rotary play to deliver a soft, smooth pull
- Quick release air cap for quick and easy changes and easy access to the fluid tip
- Integrated digital gauge placed in-line at eye level for quick, easy checking while providing precise inlet pressures for optimal gun performance
- Streamlined gun body with an ultra-comfortable ergonomic fit and feel to provide sprayers balance, optimal control and less fatigue
- Reconfigured air adjusting valve placed in an ergonomic location for more comfort and 12 times the sensitivity for precise air control adjustments and smoother air flow
- Simplified air valve for maximized fluid needle alignment and durability, minimized component wear and easier removal and serviceability

- Delivers ultimate clearcoat application performance
- Sprays a uniform pattern that lays the clear flat and easily wets up a surface
- Atomizes effortlessly, producing an even distribution of super-fine particles
- Provides maximum comfort and easy use from set-up through the entire spraying process
- Provides improved transfer efficiency and saves time completing each job

- Air Cap Part Number 704434
- Air Cap & Type DV1-C1 Plus (HVLP)
- Recommended Air Pressure at Digital Gauge 1.5 bar (22 psi)
- Air Consumption 285 L/min (10.0 scfm)
- Fluid Flow 140 - 190 g/min
- Pattern Height 325 mm (12.8 in)


Air Inlet Pressure2.0 bar (29psi)
Air ConsumptionT1: 280 l/min (9.9 cfm)
T2: 350 l/min (12.4 cfm)
H1 450 l/min (15.9 cfm) (OPTIONAL EXTRA)
Air Inlet Thread¼” Universal
Cup Capacity560 ml
Weight (gun & cup)768 g
Air Cap and RingPlated Brass
Fluid TipStainless Steel
Fluid NeedleStainless Steel

SKU 007-0172
Brand DeVilbiss
Shipping Weight 5.0000kg
