Spline Set (9pc) SERIES 2

Series 2

$319.90
In Stock


Calculate Shipping



Pick up - $0.00
Pick up

This is a professional set of tools to deliver bodywork perfection with ease.

The term "Spline" is used to describe the construction of a smooth curve. Working from a few control points (high spots) the Spline will take the path with minimal overall bending - this being the final desired surface.

How does this relate to refinishing cars?

Almost no surface on a car is flat or straight; nearly every surface has a shape. Very rarely is any surface a true radius. Every surface was created in a design studio with a Spline, either on a clay model or a computer screen. The surfaces bend, sweep and accelerate and only Splines can recreate this form. Using these to repair a surface is the most accurate way.

We can get good results with traditional sanding blocks, although blocks constantly take the average of the immediate surface around it. Blocks do not take into consideration the overall form of the surface. Whereas, a Spline allows absolute control of the surface.

Splines are the most accurate tool for perfecting bodywork. Whether it be in metal, filler, blocking sanding, or in final sanding ready to polish paint. It is the user’s decision to perfect the surface in steel, filler, or paint depending on the level of adjustment. Splines are used to find highs and lows, panel alignment, wipe in filler and sand from 80grit to 800grit. Yes, one tool does all that.

This 9-piece set consists of every Spline we manufacture. The set has been developed from the core of the auto design industry. Splines are used to read and interpret surfaces, identify areas for repair (referred to as highs and lows), check for alignment, set gaps, apply filler and all aspects of sanding. Once you start using these tools and seeing the results, perfect bodywork becomes easy.

Version 2. High tensile purpose designed composite material, diamond cut crisp sharp edges.

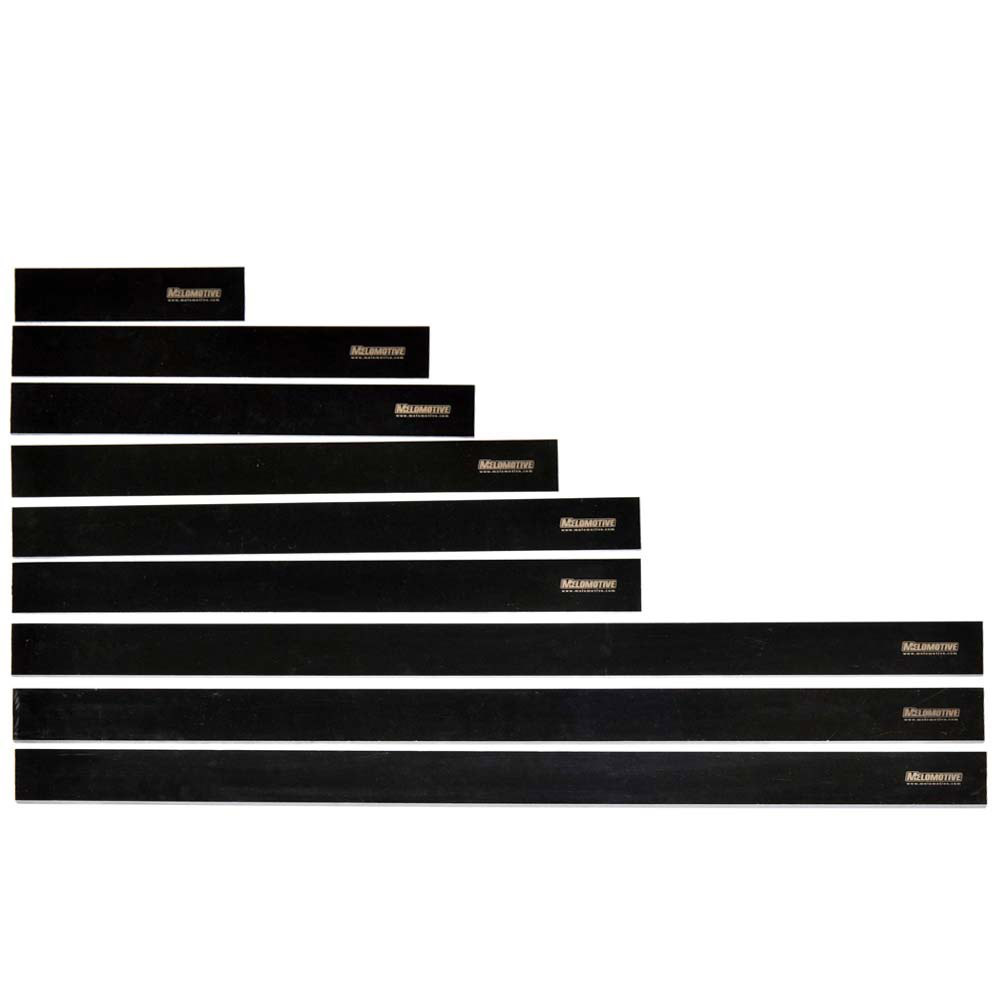

Set contains: 9 pieces measuring from 250mm - 1020mm

All splines are 70mm wide
#1 - 250mm L x 1.0mm THK
#2 - 380mm L x 1.0mm THK
#3 - 500mm L x 1.6mm THK
#4 - 500mm L x 2.4mm THK
#5 - 670mm L x 2.4mm THK
#6 - 670mm L x 3.2mm THK
#7 - 1020mm L x 3.2mm THK
#8 - 1020mm L x 4mm THK
#9 - 1020mm L x 6mm THK

(001-0199)

SKU 001-0199
Brand Melomotive
Shipping Weight 3.5500kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 1.050m
Shipping Cubic 0.006300000m3
