#9 Spline 1020mm SERIES 2 (1020 x 70 x 6.0mm)

Series 2

In Stock

Calculate Shipping

Pick up - $0.00
Pick up

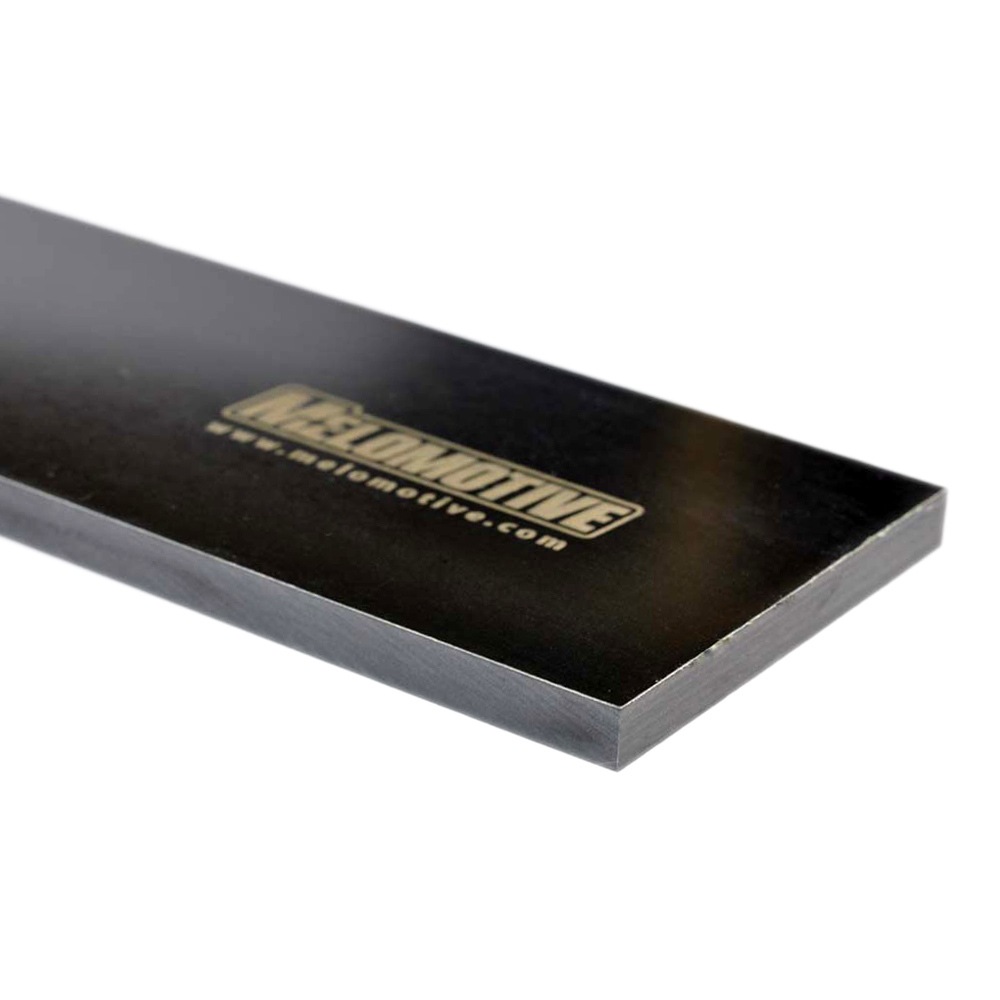

#9 Spline 1020 x 70 x 6.0mm

#9 is our thickest full length Spline. Over a metre long, this is great for most large cars with subtle curve and close to straight panels. Ideal for working the sides of most cars. This will be perfect for those long flat body sides. Use #9 to check for highs and lows, spread filler accurately over large areas to dramatically cut down sanding times. Then also use this Spline for coarse block sanding to straighten out filler and polyester. Mostly used for the shaping stages.

The term "Spline" is used to describe the construction of a smooth curve. Working from a few control points (high spots) the Spline will take the path with minimal overall bending - this being the final desired surface.

How does this relate to refinishing cars?

Almost no surface on a car is flat or straight; nearly every surface has a shape. Very rarely is any surface a true radius. Every surface was created in a design studio with a Spline, either on a clay model or a computer screen. The surfaces bend, sweep and accelerate and only Splines can recreate this form. Using these to repair a surface is the most accurate way.

We can get good results with traditional sanding blocks, although blocks constantly take the average of the immediate surface around it. Blocks do not take into consideration the overall form of the surface. Whereas, a Spline allows absolute control of the surface.

Splines are the most accurate tool for perfecting bodywork. Whether it be in metal, filler, blocking sanding, or in final sanding ready to polish paint. It is the user’s decision to perfect the surface in steel, filler, or paint depending on the level of adjustment. Splines are used to find highs and lows, panel alignment, wipe in filler and sand from 80grit to 800grit. Yes, one tool does all that.

#9 Spline 1020 x 70 x 6.0mm


SKU 001-0179
Brand Melomotive
Shipping Weight 1.5000kg
Shipping Width 0.070m
Shipping Height 0.006m
Shipping Length 1.020m
Shipping Cubic 0.000428000m3
